RCYB系列永磁除鐵
技術參數
| 型號 參數 項目
| 適應帶寬 mm
| 額定吊高 h=mm
| 物料厚度 ≤mm
| 磁場強度 ≥mT
| 適應帶速 ≤m/s
| 重量 kg
| 外形尺寸mm | ||
| L | D | H | |||||||
| RCYB-4 | 400 | 130 | 80 | 45 | 2.5 | 115 | 400 | 300 | 210 |
| RCYB-5 | 500 | 150 | 100 | 50 |
| 180 | 500 | 400 | 230 |
| RCYB-6 | 600/650 | 180 | 130 | 60 |
| 300 | 600 | 500 | 250 |
| RCYB-6.5 | 650 | 200 | 150 | 65 |
| 450 | 650 | 600 | 250 |
| RCYB-8 | 800 | 250 | 200 | 70 |
| 680 | 800 | 700 | 250 |
| RCYB-10 | 1000 | 300 | 250 | 70 |
| 980 | 1000 | 800 | 250 |
| RCYB-12 | 1200 | 350 | 300 | 70 |
| 1300 | 1200 | 1000 | 270 |
| RCYB-14 | 1400 | 400 | 350 | 70 |
| 2100 | 1400 | 1300 | 270 |
| RCYB-16 | 1600 | 450 | 400 | 70 |
| 2580 | 1600 | 1500 | 270 |

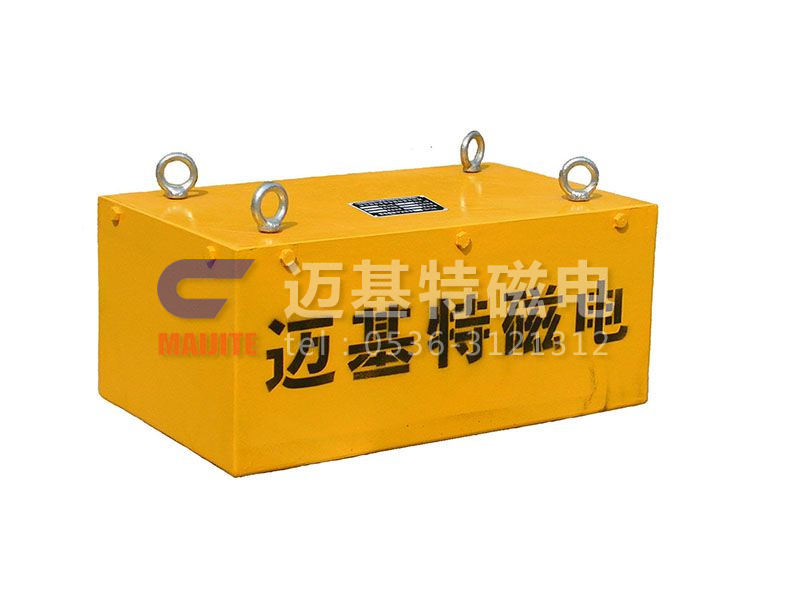

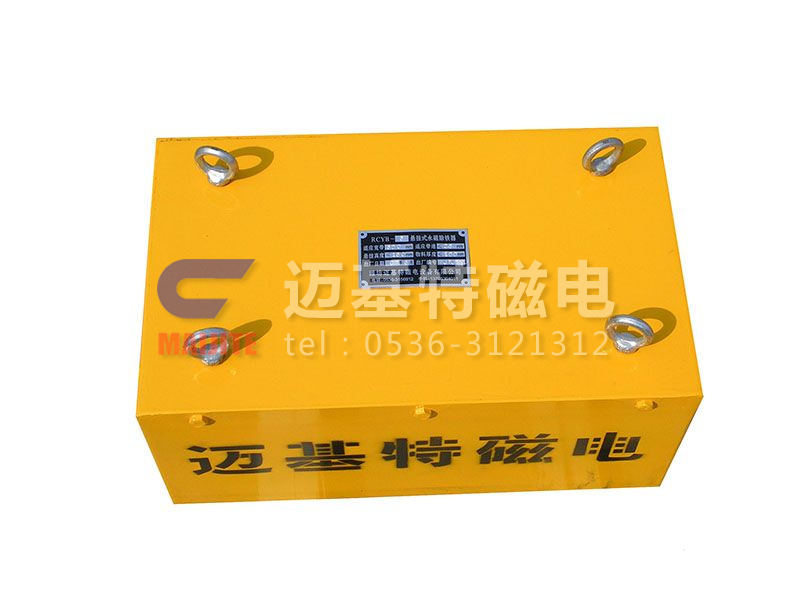

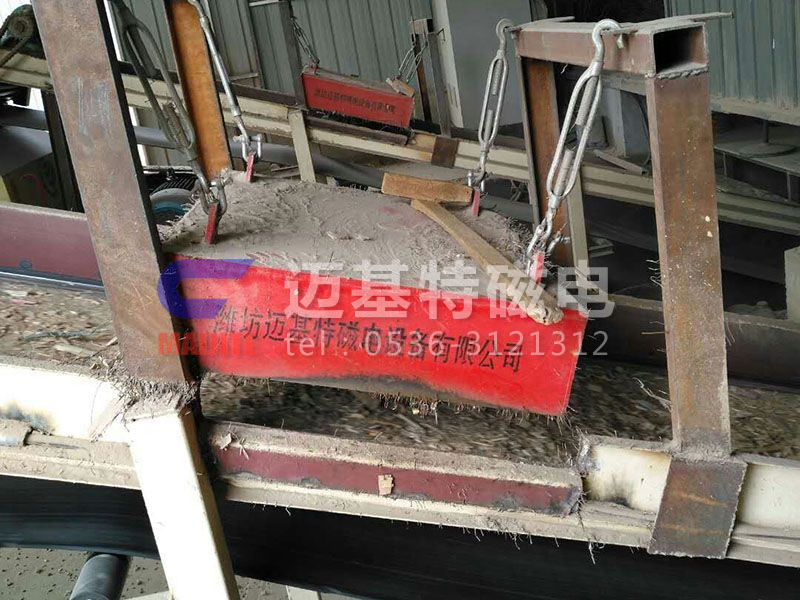

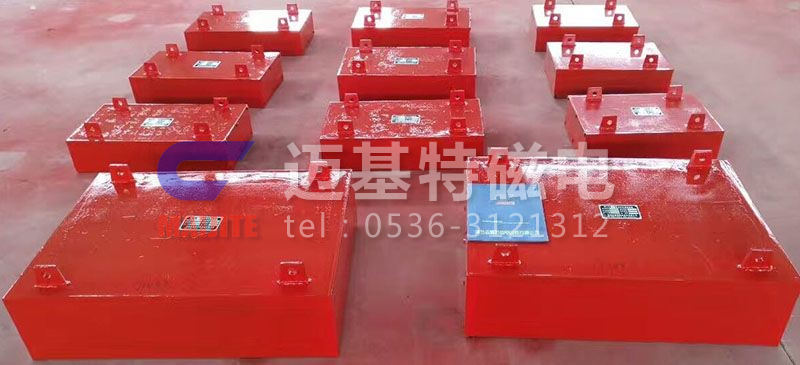

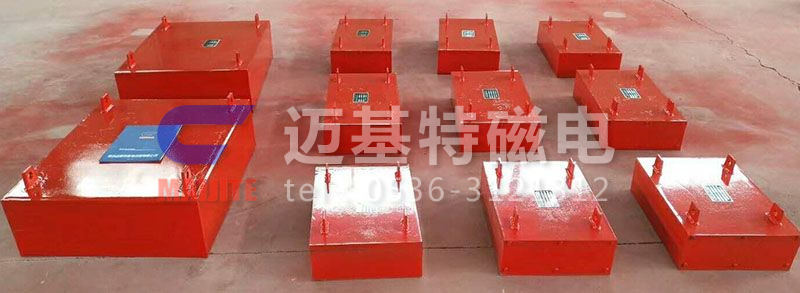

產品展示
